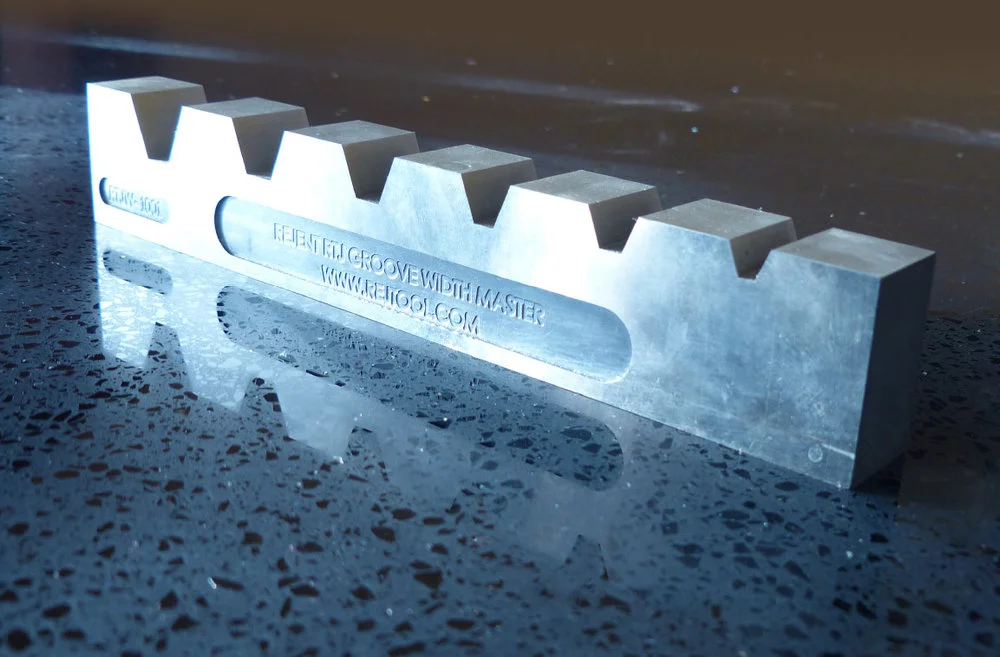

BX and R/RX Ring Groove Setting Masters

All Rejent R/RX Ring Groove Setting Masters are made of quality U.S. tool steel. Heat treated to high hardness for a long and consistent service life. Rejent R/RX gages come with a traceable certificate of calibration from Mitutoyo Labs.

Uses and Implementation

  • Used with the Rejent Ring Groove Gage & R/RX Styli to quickly and accurately set the groove diameter gage to an OD reference point.

  • Used with the Rejent Width Gage to set the zero point for the BX ring groove widths

  • Measures R11 to R64



COMBINE R/RX GROOVE GAGE AND
GO/NO-GO PADDLE GAGES

Together, these tools are the perfect combination to accurately verify ring groove widths.

When used together the Rejent Series II Ring Groove Gage, R/RX Setting Masters and Go / Nogo Paddle Gages you have a complete system for measurement of R/RX groove types.


BX Ring Groove Setting Masters

All Rejent BX Ring Groove Setting Masters are made of quality U.S. tool steel. Heat treated to high hardness for a long and consistent service life. Rejent BX gages come with a traceable certificate of calibration from Mitutoyo Labs.

Uses and Implementation

  • Used with the Rejent Ring Groove Gage & BX Styli to quickly and accurately set the groove diameter gage to an OD reference point.

  • Used with the Rejent Width Gage to set the zero point for the BX ring groove widths.

  • Used with a depth comparator gage to set the zero point for checking the BX groove depths.




ALL REJENT BX RING GROOVE SETTING MASTERS ARE MADE OF QUALITY U.S. TOOL STEEL.

Heat treated to high hardness for a long and consistent service life. Rejent BX gages come with a traceable certificate of calibration from Mitutoyo Labs.


Online Orders


BX150-BX161
Setting Master



BX158-BX159
Setting Master



BX156-BX15
Setting Master



BX169-BX170
Setting Master



BX154-BX155
Setting Master



BX152-BX153
Setting Master



BX150-BX151
Setting Master
