RTJ and BX Ring Groove Gages - API 6A Seal Ring Groove Gages

Used in the measurement of both pitch and major diameter of RTJ and BX grooves, these comparators are both rugged and accurate. Made from the finest of materials, our gages will withstand the harshest conditions your shop has to offer.

Available in various lengths and with a multitude of special application attachments, our gages will function reliably and accurately for many years to come.

Our Rejent Ring Groove comparator is designed specially for the energy sector including oil & gas as well as any high pressure component using R/RX or BX grooves.

WE SPECIALIZE IN

  • RTJ and BX Groove gages for accurate and repeatable measurements

  • RTJ and BX setting masters for rapid setting of Groove gages

  • RTJ and BX paddle gages for quick reference on the machining floor

  • Width gages for Ring grooves

  • Custom tips for Groove Gages

  • Custom gages for any application

Rejent Ring Groove gage is a precision built instrument

Our gages are both accurate and durable enough for everyday shop use. The standard sphere set (7/16 diameter) allows for example, direct measurement of RTJ and RX groove center-lines with a repeatability for under .0002". Standard tool comes with .4375'' diameter spheres and allows the user to measure R11 to R64 center-lines (1.95'' - 19.3'').

MEETS INDUSTRY REQUIREMENTS

  • Easy To Use

  • Expandable

  • Customizable Styling

  • Top Quality Materials



AN ANY-RING MEASUREMENT SYSTEM

The Ring Groove Gage can be used as a stand alone tool or expanded into a full any-ring type measurement system. Easy to swap precision stem spheres from .250'' to 1.000'' (sold separately) allows for virtually any ring type groove to be quickly checked. For those special grooves that many shops encounter Rejent offers custom geometry stems and stem styli. Comes with a custom fitted sturdy ABS case.

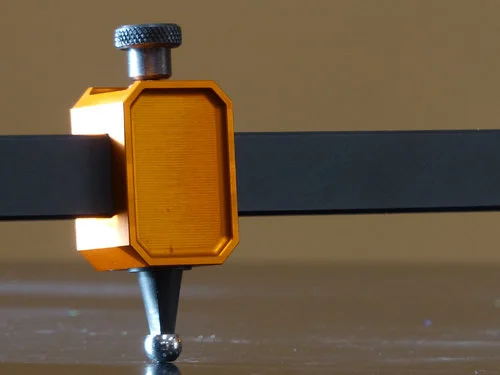

Rejent Ring Groove

Our standard length gauge covers centerline distances from 1.95'' to 19.3'' but we offer both longer, up to 50'', and shorter versions. Let us know what you need. For extremely quick setting and precise measurement of oilfield RTJ and BX grooves, Rejent offers the optional RTJ Setting Master and BX Setting Masters. These certified, hardened and ground tool-steel masters are second to none in gauge setting convenience and precision and truly make the Rejent Ring Gauge a system you can rely on.


Rejent Series II Ring Groove Gage Specifications

PRODUCT SCOPE

High precision gages for measuring API ring grooves both
R/RX and with available styli BX grooves as well.

CAPABILITIES APPLIED/PROCESSES

Primary:
Engineering Design
Machining  -  Wire EDM, Hardened, Precision Ground
Component Sourcing
Assembly

ADDITIONAL FEATURES

Available with analog or digital indicators.
Custom Styli available. Rugged case included.

OVERALL PART DIMENSIONS

26 x 3 x 1.5

MEASURING TOLERANCES

+/- .0003 when used with Setting Masters

MATERIAL USED

Tool Steel, 7075 Anodized Aluminum

IN PROCESS TESTING/INSPECTION PERFORMED

Dimensional Inspection, Visual Inspection, Functionality

INDUSTRY FOR USE

Oil & Gas, Refineries, Pumps, Valves

DELIVERY/TURNAROUND TIME

Stock

STANDARDS MET

API Ring Groove Measurement

PRODUCT NAME

Rejent Series II Ring Groove Gage and Paddle Gages
